Description

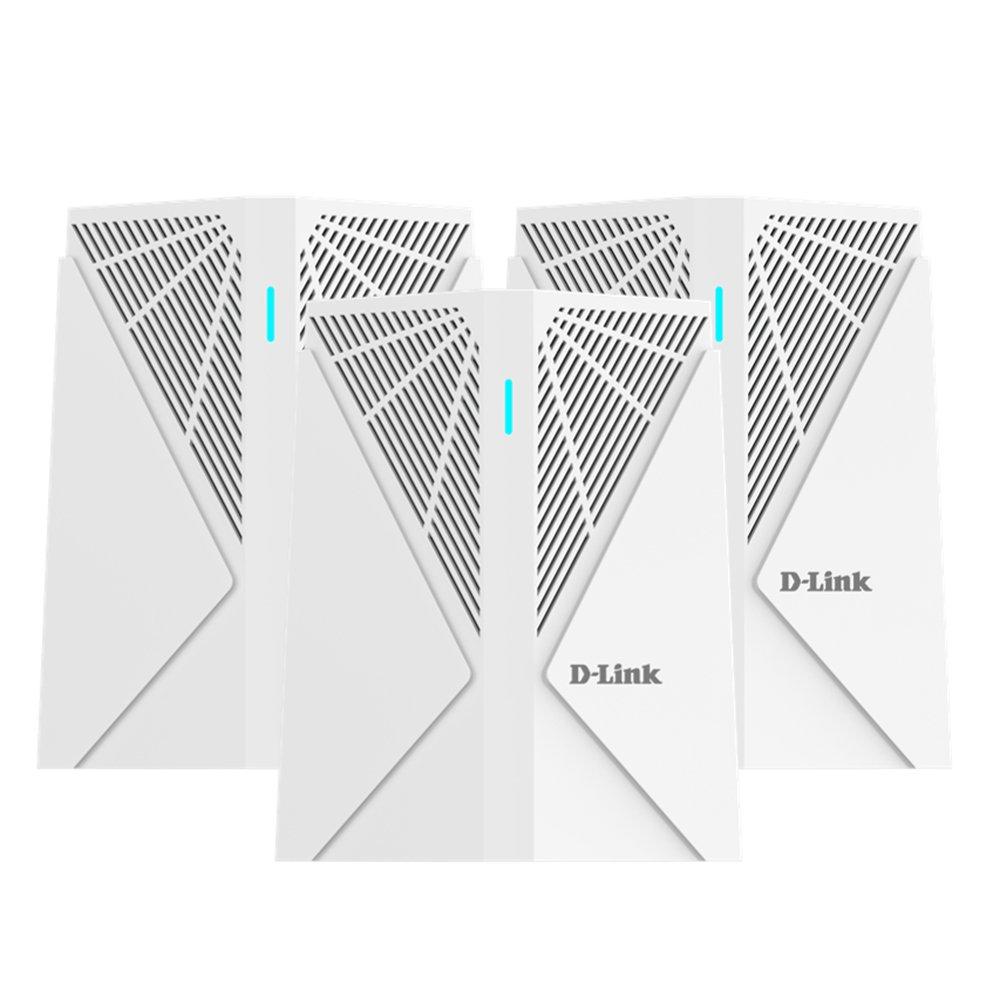

AX5400 WiFi 6E Tri-Band Mesh Router DIR-XE5480 – D-Link-True Tech.
AX5400 WiFi 6E Tri–Band Mesh Router DIR–XE5480 – D-Link
Specification
| Category | Specification |
|---|---|
| Brand | D-Link |
| Color | White |
| Model Number | DIR-XE5480/MNA3 |
| Type | Router |
| CPU Frequency | Quad-core 1.7 GHz |
| Memory | 256 MB 16-bit DDR3L |
| Flash | 128 MB NAND |
| Modulation Schemes | OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM; DSSS: DBPSK, DQPSK, CCK |
| Transfer Rate | HE20: up to 574 Mbps (2.4G+5G); HE40: up to 1147 Mbps (2.4G+5G); HE80: up to 1201 Mbps (5G); HE160: up to 2402 Mbps (5G/6G) |
| Network Protocol | RFC0768 UDP, RFC0791 IP, RFC0792 ICMP, RFC0793 TCP, RFC0826 Ethernet ARP, etc. |
| Standards | 802.11a/b/g/n/ac/ax |
| Bands | Tri-band |
| Frequency Ranges | 2.4 GHz – 2.4835 GHz (2.4G); 5.150 GHz – 5.825 GHz (5G); 5.925 GHz – 7.125 GHz (6G) |
| Interfaces | 2 x RJ45 10M/100M/1000M LAN, 1 x RJ45 10M/100M/1000M/2500M WAN, 1 x Reset button, 1 x WPS button, 1 x Power jack |
| WiFi Encryption | WPA3 |
| WiFi | 2T2R 2.4GHz 802.11b/g/n/ac/ax (574 Mbps); 2T2R 5.8GHz 802.11a/n/ac/ax (2402 Mbps); 2T2R 6G 802.11a/n/ac/ax (2402 Mbps) |
| Ethernet | Gigabit Ethernet |
| LAN Ports | 2 |
| Processor | BCM6756 + BCM50212E + BCM6705 |
| Power Supply | 12 Volts |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95% (typical) |
| Antenna Type | 2 x 3dBi internal 2.4G, 2 x 5dBi internal 5G, 2 x 5dBi internal 6G |
| Number of Antennas | 6 |
